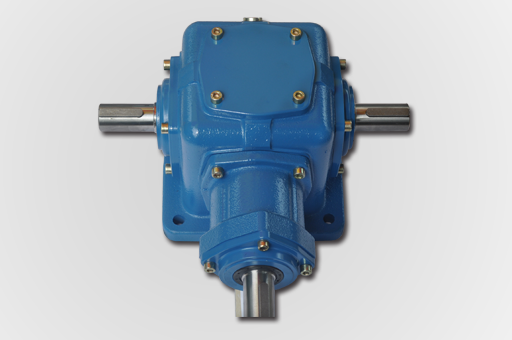

T series spiral bevel speed reducer
 |
 |
 |
OUR ADNANTAGES
-High performance
-light vibration
-transmit smoothly
-low noise
Spiral bevel speed reducer can rotate in either clockwise or anticlockwise and adopts a structure design of multi-direction and integrated input and output shaft. It has features of small volume, high loading capability, wide power range, low noise, high efficiency, flexible in alternating directions freely.
SPECIFICATION
| Housing material | HT200 high-strength cast iron |
| Housing hardness | HBS90-240 |
| Gear material: | 20CrMnTi |
| Surface hardness of gear | HRC58°-62° |
| Gear core hardness | HRC33°-40° |
| Input/output shaft material | 40CrMnTi |
| Input/Output shaft hardness | HB220-250 |
| Heat treatment | tempering, cementing, quenching etc |
| Efficiency | 94%-96% |
| Noise(Max) | 60-68dB |
| Tem.rise: | 40°C |
| Tem.rise | 50°C |
| Vibration | ≤20um |
| Backlash | ≤20Arcmin |
| Motor | IP54, F class |
| Motor shaft | 40Cr, Tempering, cementing, quenching etc. |
XINJIN Transmission will help you
● Providing suitable gearbox and combined gearbox to meet your application needs;
● Lowering maintenance cost and increasing operation efficiency;
● Improving production capacity and bringing economic benefits.
