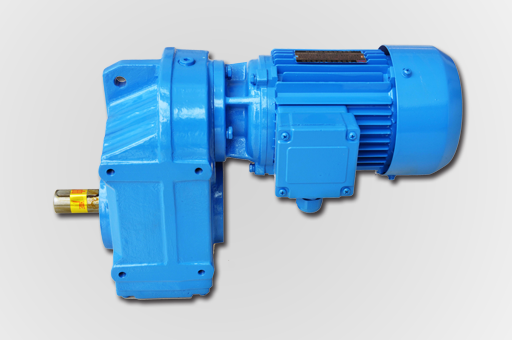

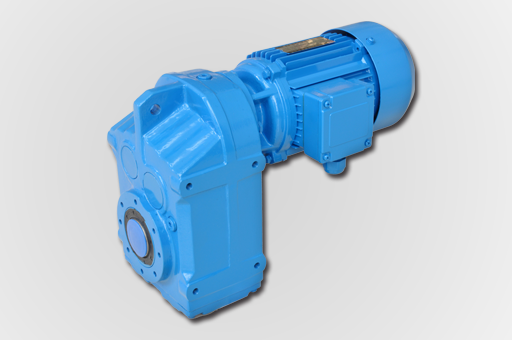

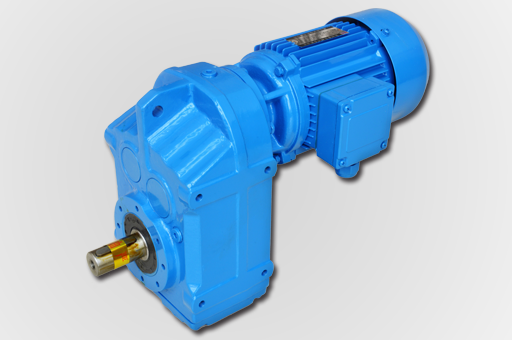

F Series Parallel Shaft Helical gear reducer
 |
 |
 |
 |
OUR ADNANTAGES
-High torque density
-High permitted overhung loads
-Multi-stage gear units for low out speeds
-F37….F157 Reduced backlash option
XINJIN-transmission extra-slim parallel shaft helical geared motors are the perfect solution when space is limited. The many different sizes and designs ensure that the gearbox can be used a wide range of applications even under the most unfavorable conditions. XINJIN Parallel shaft helical gear reducer are typically used in conveyor and materials processing applications.
Foot-mounted or Flange-mounted or shaft-mounted as installation options.
| Model(10) | F37, F47, F57, F67, F77, F87, F97, F107, F127, F157 |
| Ratio | 87-31434 |
| Input Power | 0.12-200KW |
| Output Torque | 3.5-21700N.m |
| Output Speed | 5-371 RPM |
| Gear Accuracy | 7 to 6 level |
| Gear Surface hardness | HRC58°-62° |
| Input/Output shaft hardness | HB220-250 |
| Noise(Max) | 60-70dB |
| Tem.rise(Max) | 40°C |
| Tem.rise(Oil Max) | 50°C |
| Vibration | ≤20um |
| Backlash | ≤20Arcmin |
| Effeciency | Single stage 98%, Double-stage:96%, Three-stage:94% |
| Mounting Position | Foot / Flange Mounting |
| Motor | IP54,F Class |
XINJIN Transmission will help you
● Providing suitable gearbox and combined gearbox to meet your application needs;
● Lowering maintenance cost and increasing operation efficiency;
● Improving production capacity and bringing economic benefits.
