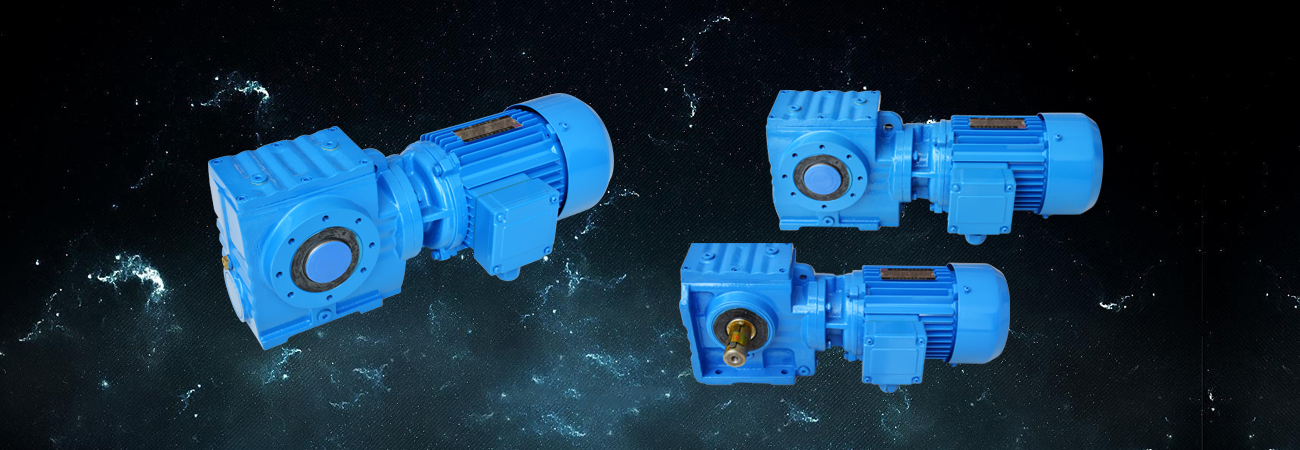

S Series Helical Worm Geared Motor
 |
 |
 |
 |
OUR ADNANTAGES
-Economical operation
-High permitted overhung loads
-low noise
-Specially designed for every industry application
XINJIN-transmission helical-worm gear reducer are helical/ helical-worm combinations, so they are more efficient than normal helical-worm gear unit. Due to their outstanding efficiency, our gear box can be used in every industry and tailored to individual torque and speed requirements. The reduction ratios afforded by the helical – worm gear stage and the low noise levels during operation make these gearmotors ideal low –cost solutions for simple applications.
SPECIFICATION
| Housing material | high-strength cast iron |
| Housing hardness | HBS90-240 |
| Gear material: | 20CrMnTi |
| Surface hardness of gear | HRC58°-62° |
| Gear core hardness | HRC33°-40° |
| Input/output shaft material | 40CrMnTi |
| Input/Output shaft hardness | HB220-250 |
| Heat treatment | tempering, cementing, quenching etc |
| Efficiency | 94%-96% |
| Noise(Max) | 60-68dB |
| Tem.rise: | 40°C |
| Tem.rise | 50°C |
| Vibration | ≤20um |
| Backlash | ≤20Arcmin |
| Motor | IP54, F class |
XINJIN Transmission will help you
● Providing suitable gearbox and combined gearbox to meet your application needs;
● Lowering maintenance cost and increasing operation efficiency;
● Improving production capacity and bringing economic benefits.
