PRODUCTS

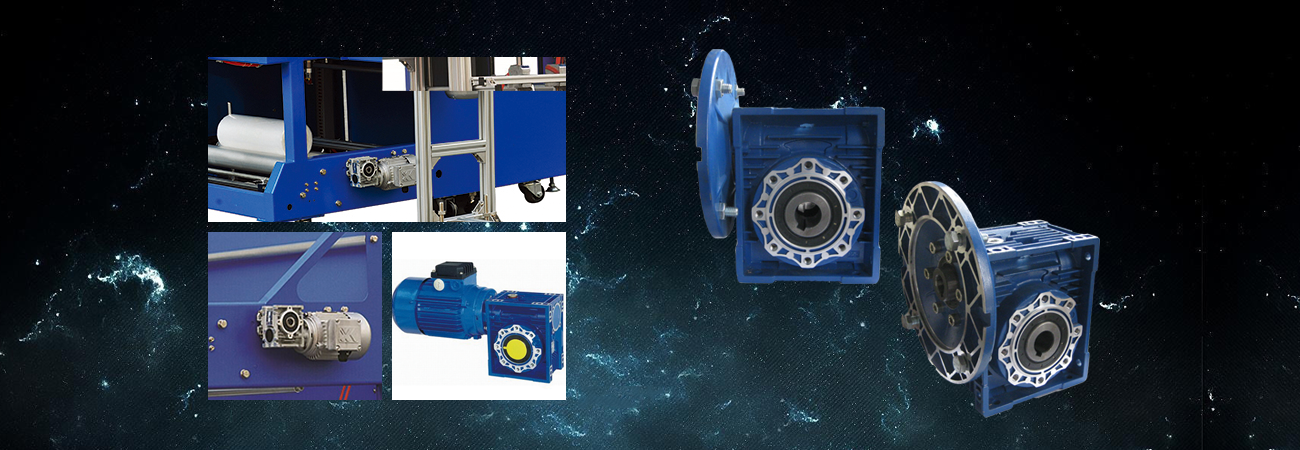

RV series Worm Gear Speed Reducer
 |
 |
 |
SPECIFICATION
| Model: | NMRV25-150 |
| Ratio: | 1:7.5,10,15,20,25,30,40,50,60,80,100 |
| Color: | Blue/Silver Or On Customer Request |
| Material: | Housing: Die-Cast Aluminum Alloy |
| Worm Gear-Copper-10-3# | |
| Worm-20CrMn Ti with carburizing and quenching, surface harness is 56-62HRC | |
| Shaft-chromium steel-45# | |
| Packing: | Carton and Wooden Case |
| Bearing: | C&U Bearing |
| Input Power: | 0.06KW,0.09KW,0.12KW,0.18KW,0.22KW,0.25KW,0.37KW,0.55KW,0.75KW,1.1KW,1.5KW,2.2KW,4KW,5.5KW,7.5KW |
| Usages: | Industrial Machine: Food Stuff, Ceramics, CHEMICAL, Packing, Dyeing,Woodworking, Glass. |
| IEC Flange: | 56B5,56B14,63B5,63B14,71B5,71B14,80B5,80B14,90B5,90B14,100B5,100B14,112B5,112B14 |
| Lubricant: | Synthetic & Mineral |
XINJIN Transmission will help you
● Providing suitable gearbox and combined gearbox to meet your application needs;
● Lowering maintenance cost and increasing operation efficiency;
● Improving production capacity and bringing economic benefits.
