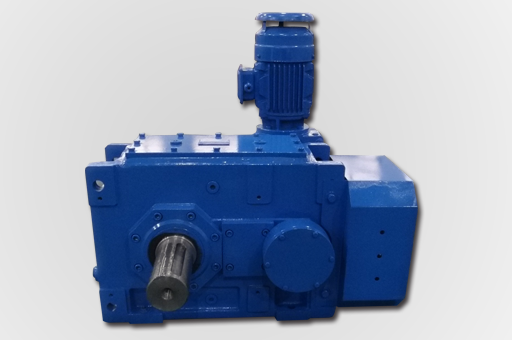

    H&B Heavy Duty Gearbox


    H&B Heavy Duty Gearbox (size:3-12)
    Power range: 3 ∼2000 KW
    Transmission ratio range: 6.3-400
    Torque range: 6.2-78KN.m

    H&B Heavy Duty Gearbox (size:13-26)
    Power range: 4 ~5000 KW;
    Transmission ratio range: 1.25-450(imax 138000);
    Torque range: 2.3-900KN.m;

    Sound-absorbable structure, larger surface, big fan reduce temperature and noise, advanced grinding process of cylindrical gear and bevel gear improve stability and transmit power more efficiently.
    Based on modular combined system, we design and develop all kind series gear motor, which is the most common and advanced transmission device nowadays among international power transmission industry, with our strict quality criteria and quality control, we try our best to provide SEW-EURODRIVE standard and quality gearboxes with low cost, replace their product in the field of drive engineering.

    SPECIFICATION
          Housing material           HT250 High strength cast iron
          Housing hardness       HBS90-240
          Gear material:       20CrMnTi
          Surface hardness  of gear           HRC58°-62°
          Gear core hardness       HRC33°-40°
          Input/output shaft material                 40CrMnTi
          Input/Output shaft hardness       HB220-250
          Heat treatment       tempering, cementing, quenching etc
          Efficiency       94%-96%
          Noise(Max)       60-68dB
          Tem.rise:       40°C
          Tem.rise       50°C
          Vibration       ≤20um
          Backlash       ≤20Arcmin
          Motor       IP54, F class
          Motor shaft       40Cr, Tempering, cementing, quenching etc.

    XINJIN Transmission will help you
    ● Providing suitable gearbox and combined gearbox to meet your application needs;
    ● Lowering maintenance cost and increasing operation efficiency;
    ● Improving production capacity and bringing economic benefits.
